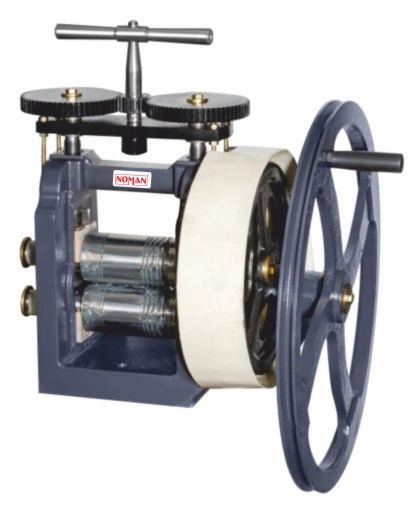

Roll Press Machine Hand Operate

Description

Dimension / Model	NJM011	NJM011	NJM011	NJM012	NJM012	NJM012
Rolls Width x Diameter	101×57 mm 4″×2.25″	127×63.5 mm 5″×2.5″	152×76 mm 6″×3″	101×57 mm 4″×2.25″	127×63.5 mm 5″×2.5″	152×76 mm 6″×3″
Operation System	Manual or Ele.	Manual or Ele.	Manual or Ele.	Manual or Ele.	Manual or Ele.	Manual or Ele.
Wire Greaves From To	0.75 – 7	0.75 – 9	0.75 – 10	0.75 – 7	0.75 – 9	0.75 – 10
Max. Sheet Width	37	48	57	37	48	57
Wires in Fully Grooved Rolls	0.75 – 8	0.75 – 10	0.75 – 12	0.75 – 8	0.75 – 10	0.75 – 12
Max. Apertures of Rolle	6	6	6	12	14	16
No. of Hall Round Grooves	2	2	2	2	2	2
Ration	4.6 / 1	3.5 / 1	4 / 1	4.6 / 1	3.5 / 1	4 / 1
Depth per Rotation of Staring	0.78	0.50	0.66	0.78	0.50	0.66
Machine Dimension without Pully in CM.	35×34×45	37×37×37	42×42×52	45×34×45	47×37×47	52×42×52
Machine Net. Weight	51.00 kg	71.00 kg	89.60 kg	59.00 kg	79.00 kg	101.00 kg
Shipping Dimension is CM. (Pully)	44×42×44 +52×14×52	47×43×47 +62×14×62	51×47×51 +62×14×62	49×42×44 +52×14×52	52×43×47 +62×14×62	56×47×51 +62×14×62
Shipping Weight	345.00 kg	100.00 kg	122.00 kg	88.00 kg	108.00 kg	130.00 kg
