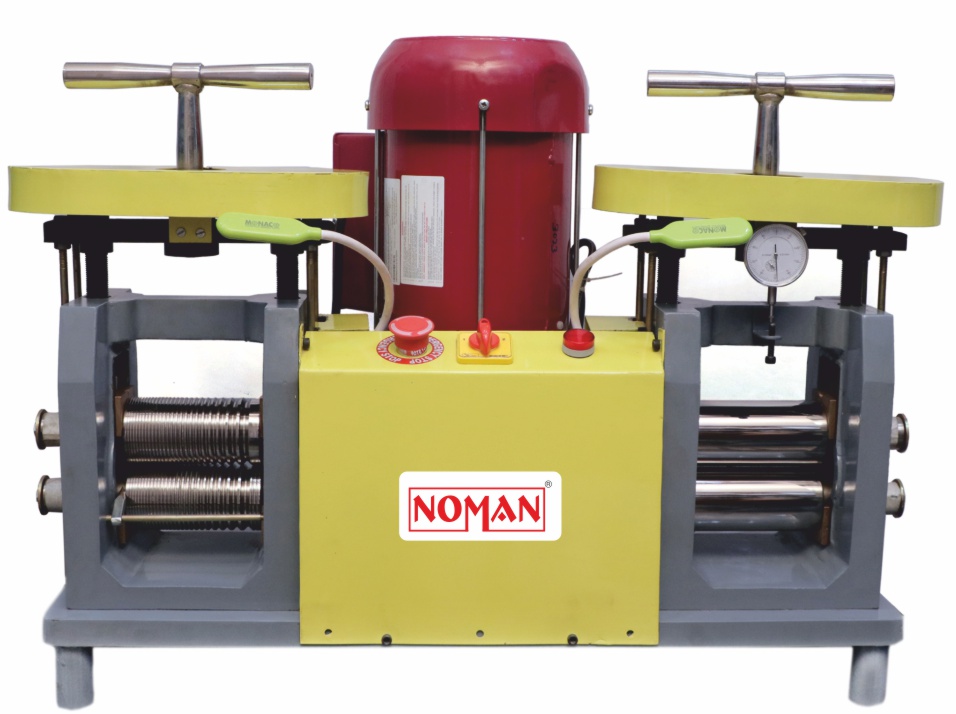

Roll Press Machine Double Head
Compact Model
| Dimension / Model | NJM010 |
|---|---|
| Rolls Width x Diameter | 127×63.5 mm 5″×2.25″ |
| Wire Greaves From To | 0.75 – 9 |
| Max. Sheet Width Rolled | 80 |
| Max. Apertures of Rolle | 30 |
| No. of Hall Round Grooves | 2 |
| Max. Roller Speed | 7.25 (M/Min.) |
| Depth per rotation of Staring | 0.50 |
| Power Supply | 1.50 hp 1.1 kw – 1 Phase |
| Lubricating System | Manual Pump Attached |
| Machine Dimension in CM. | 84×42×65 |
| Machine Net. Weight | 182.00 kg |
| Shipping Dimension is CM. | 100×55×75 |
| Shipping Weight | 235.00 kg |
