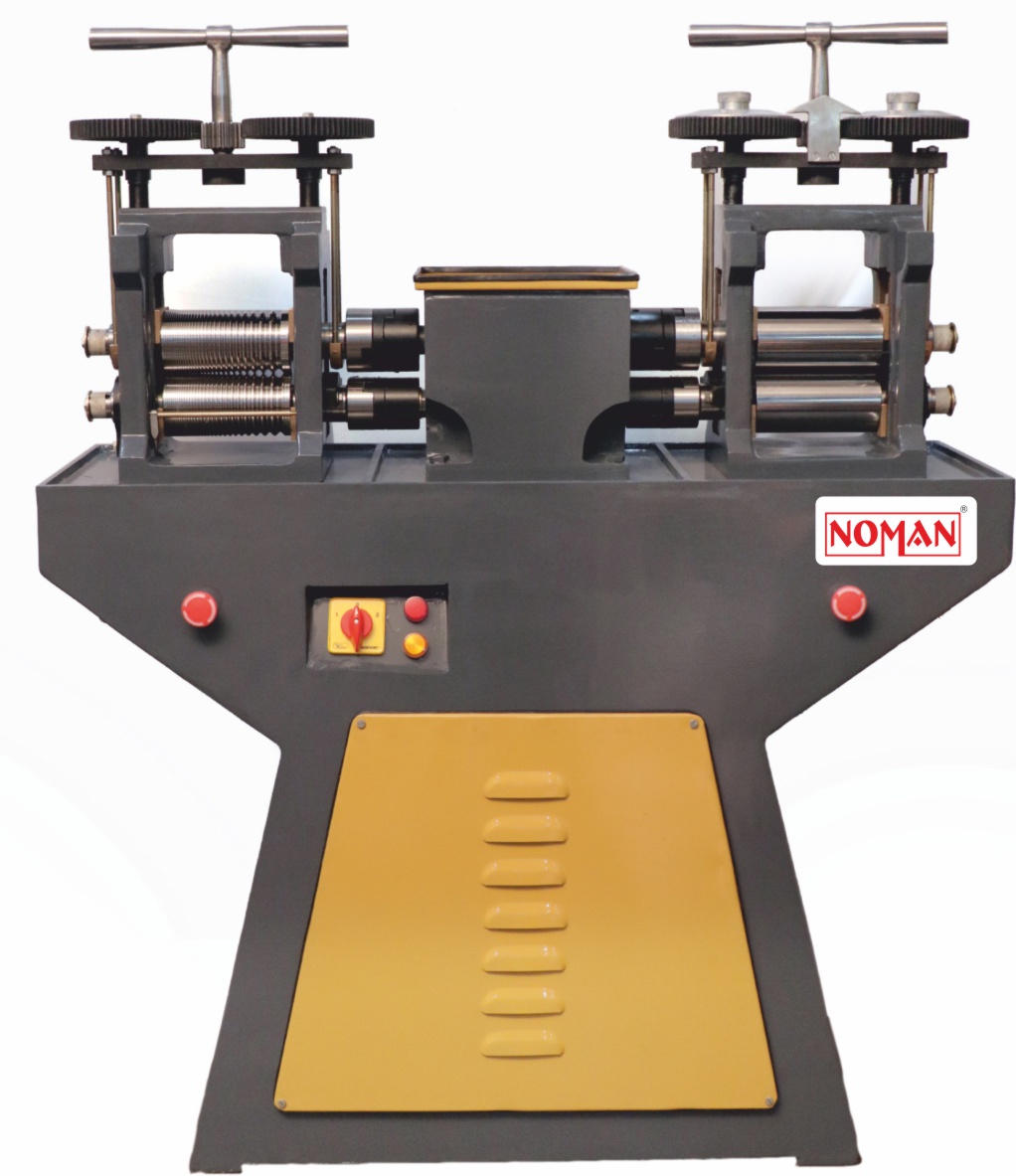

Roll Press Machine Combined Double Head With Gear Box

Standard Model

Specification	NJM001 (4×2.25)	NJM001 (5×2.5)	NJM001 (6×3)
Rolls Width x Diameter	101×57 mm 4″×2.25″	127×63.5 mm 5″×2.5″	152×76 mm 6″×3″
Wire Grooves From – To	0.75 – 8	0.75 – 9	0.75 – 10
Max. Sheet Width can be Rolled	60	80	100
Max. Apertures of Rolls	25	31	35
No. of Half Round Grooves	2	2	2
Max. Roller Speed	7.57 (M/Min.)	9.42 (M/Min.)	11.66 (M/Min.)
Depth Per Rotation of Staring	0.78	0.50	0.66
Emergency Brake	Optional	Optional	Optional
Auto Lubricating System	Optional	Optional	Optional
Power Supply	1 h.p./0.75 kW, 1 Phase	1.5 h.p./1.1 kW, 1 Phase	2 h.p./1.5 kW, 1 Phase
Machine Dimension in cm	85×34×117	97×42×125	107×51×132
Machine Net Weight	209 kg	285 kg	365 kg
Shipping Dimension in cm	100×54×132	110×70×135	120×74×135
Shipping Weight	270 kg	345 kg	450 kg
